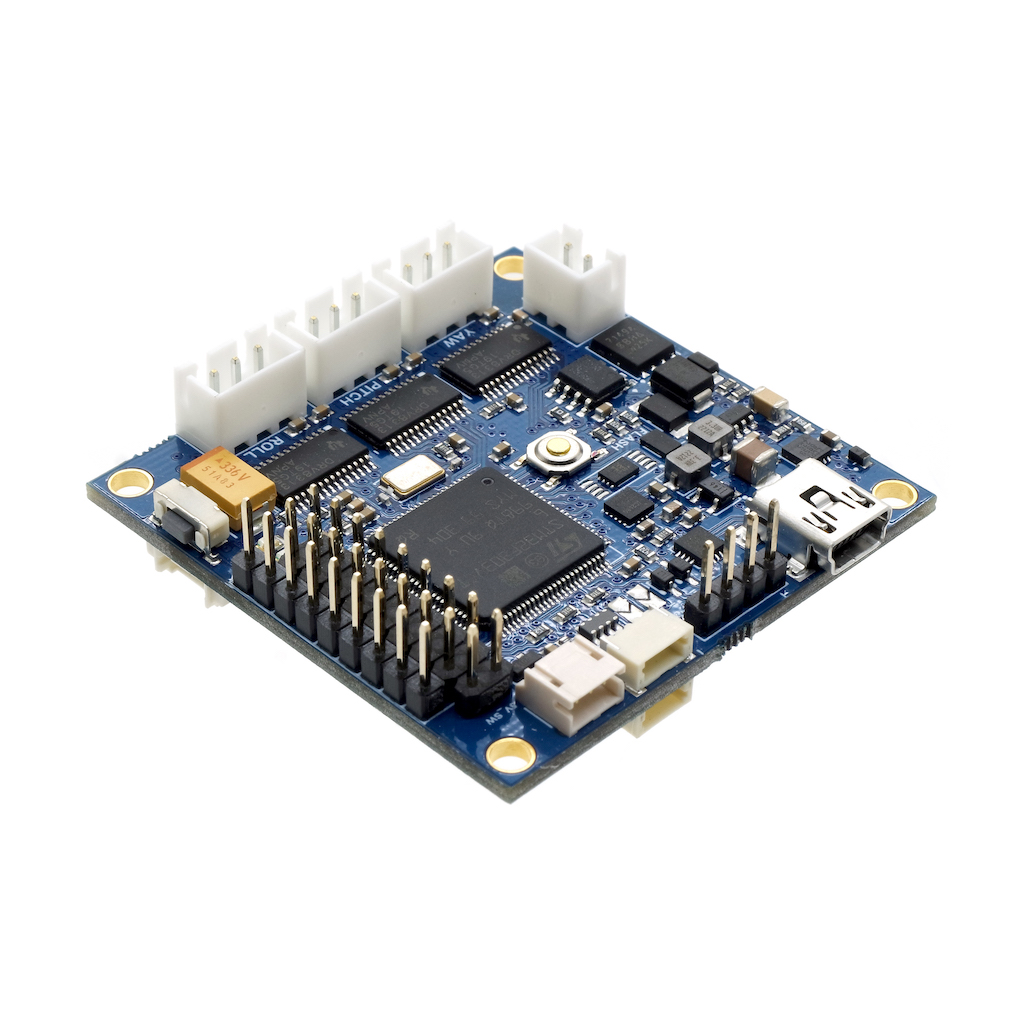

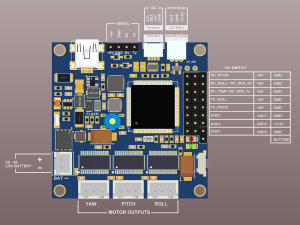

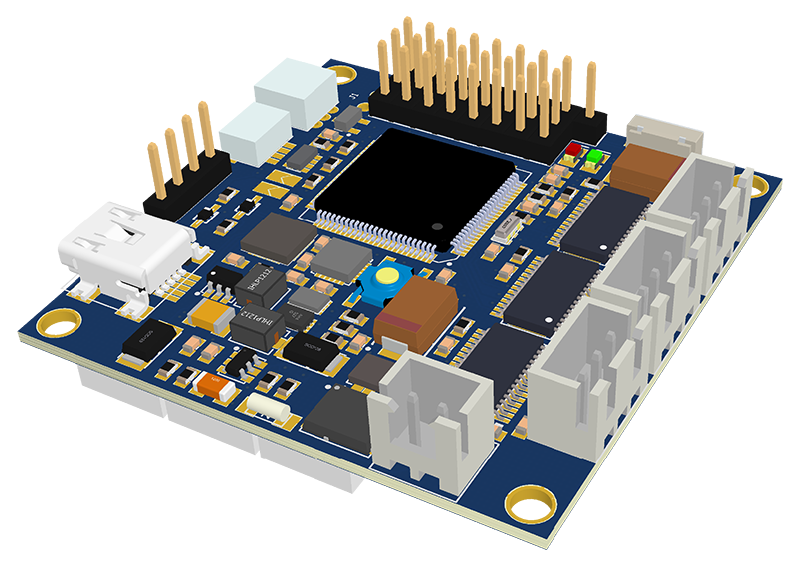

BaseCam SimpleBGC 32-bit Extended

SimpleBGC 32-bit Extended controller is the advanced version of SimpleBGC 32-bit brushless gimbal controller introduces new capabilities:

  • Built-in Frame IMU
  • Current sensor to measure battery power consumption
  • CAN-bus to replace I2C for the IMU sensor and other periphery connection
  • Dedicated 3x SPI/PWM ports for encoder connection
  • Additional I2C port to connect 2nd IMU or encoders
  • Built-in sound beeper
  • Up to 6s LiPo battery is supported
  • Supports extra features in the firmware that are not available in «Regular» and «Tiny» versions (see «Versions comparision chart» in the «Appendix A» of the User Manual)

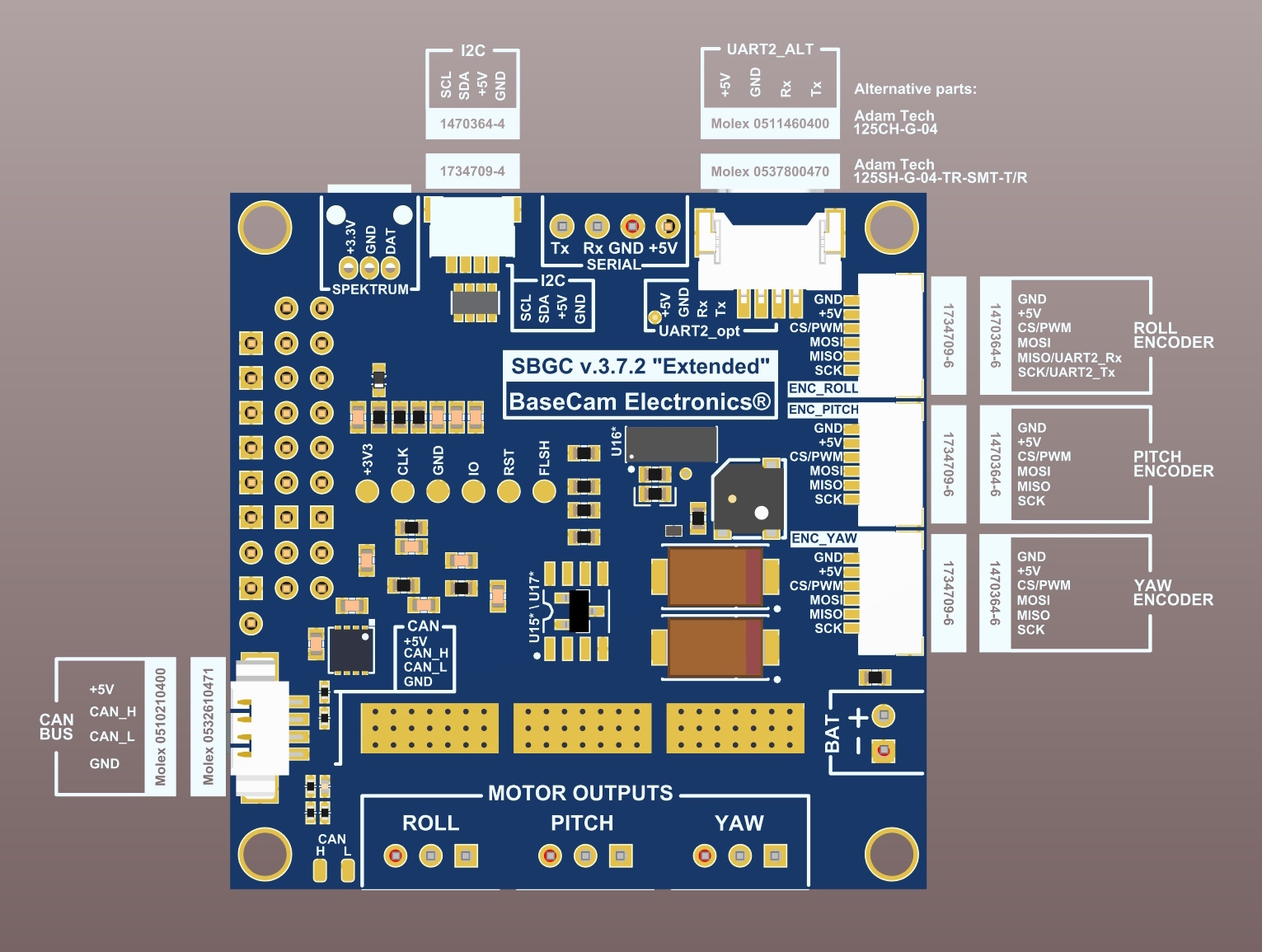

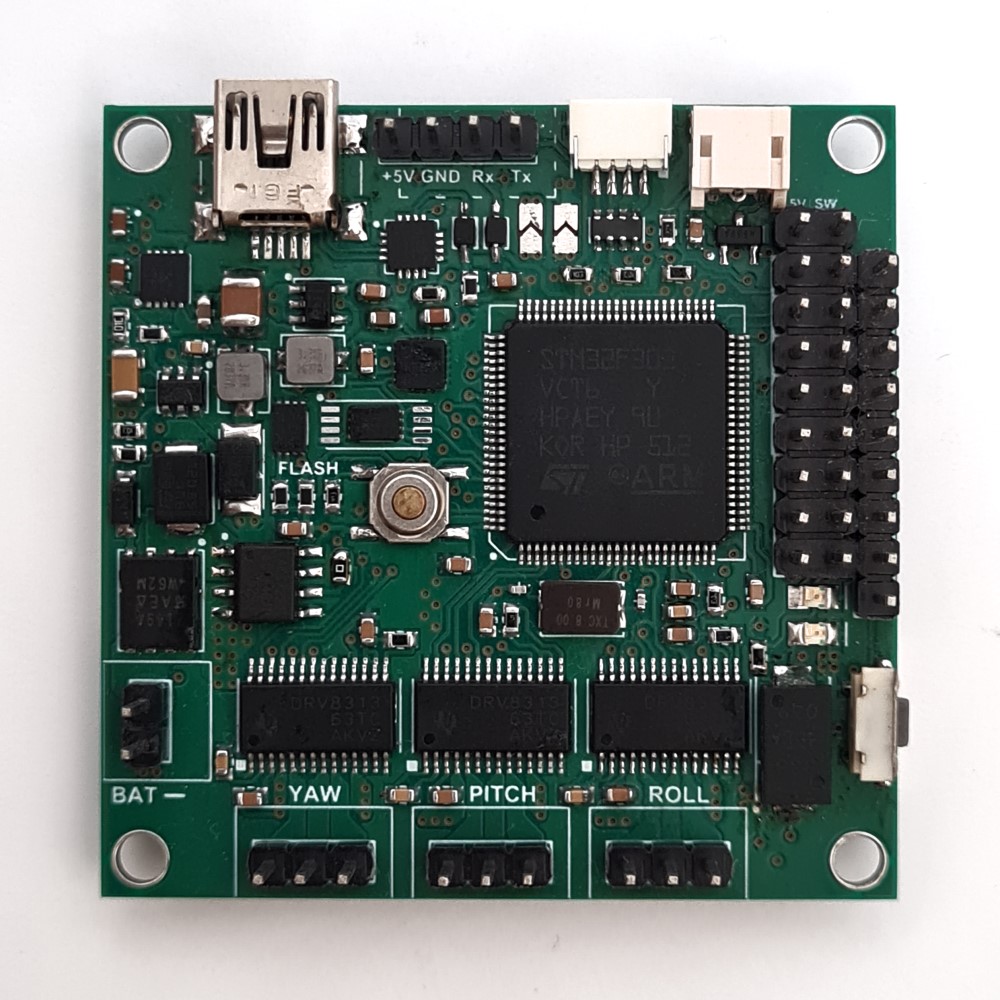

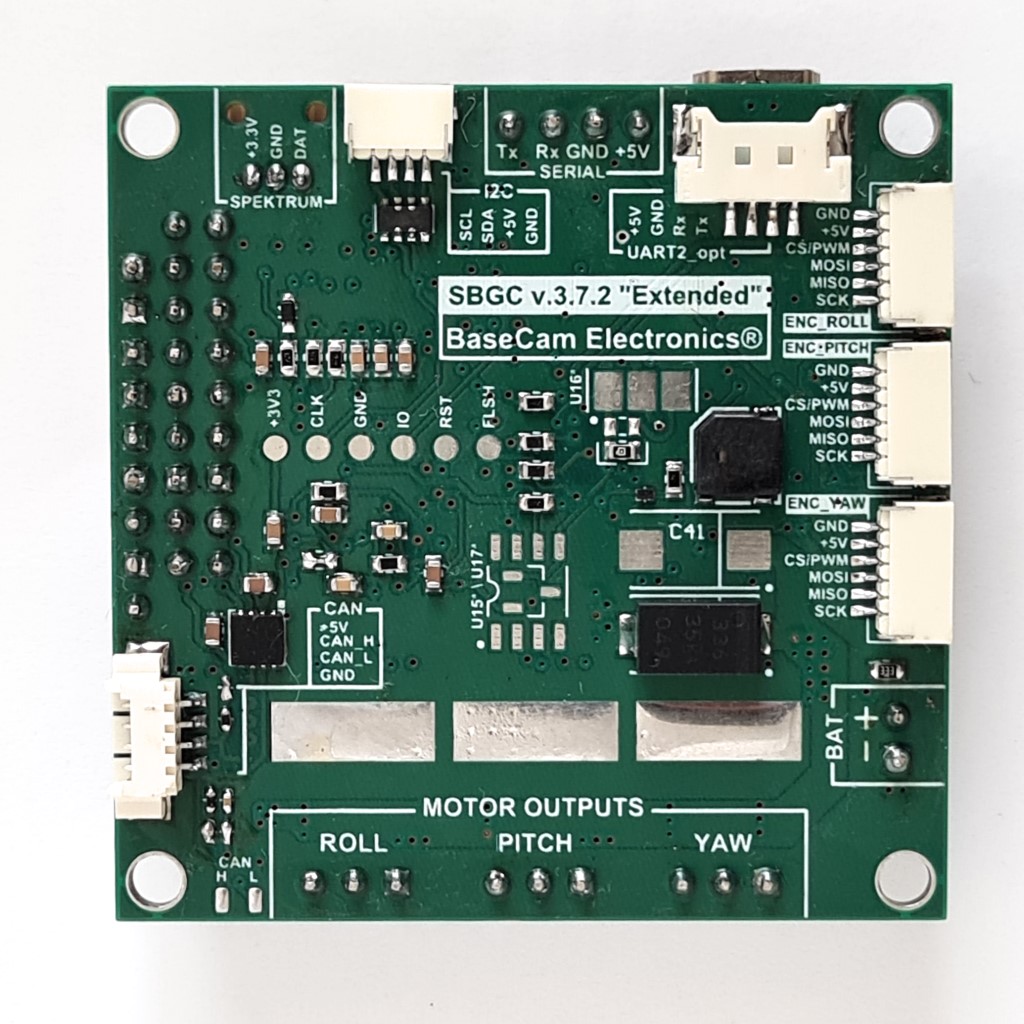

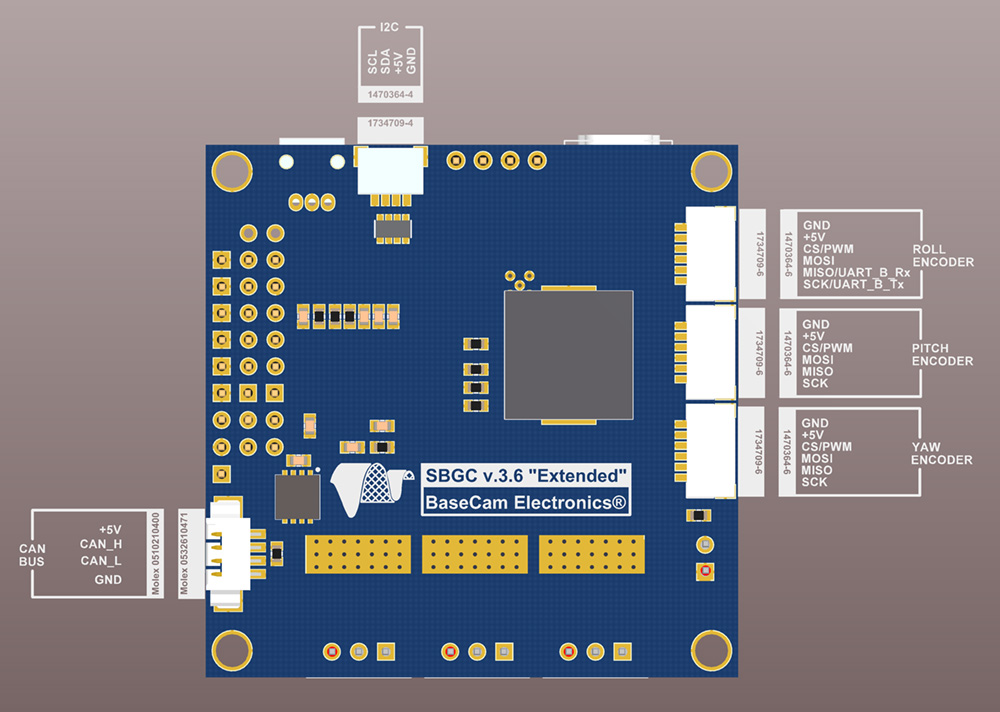

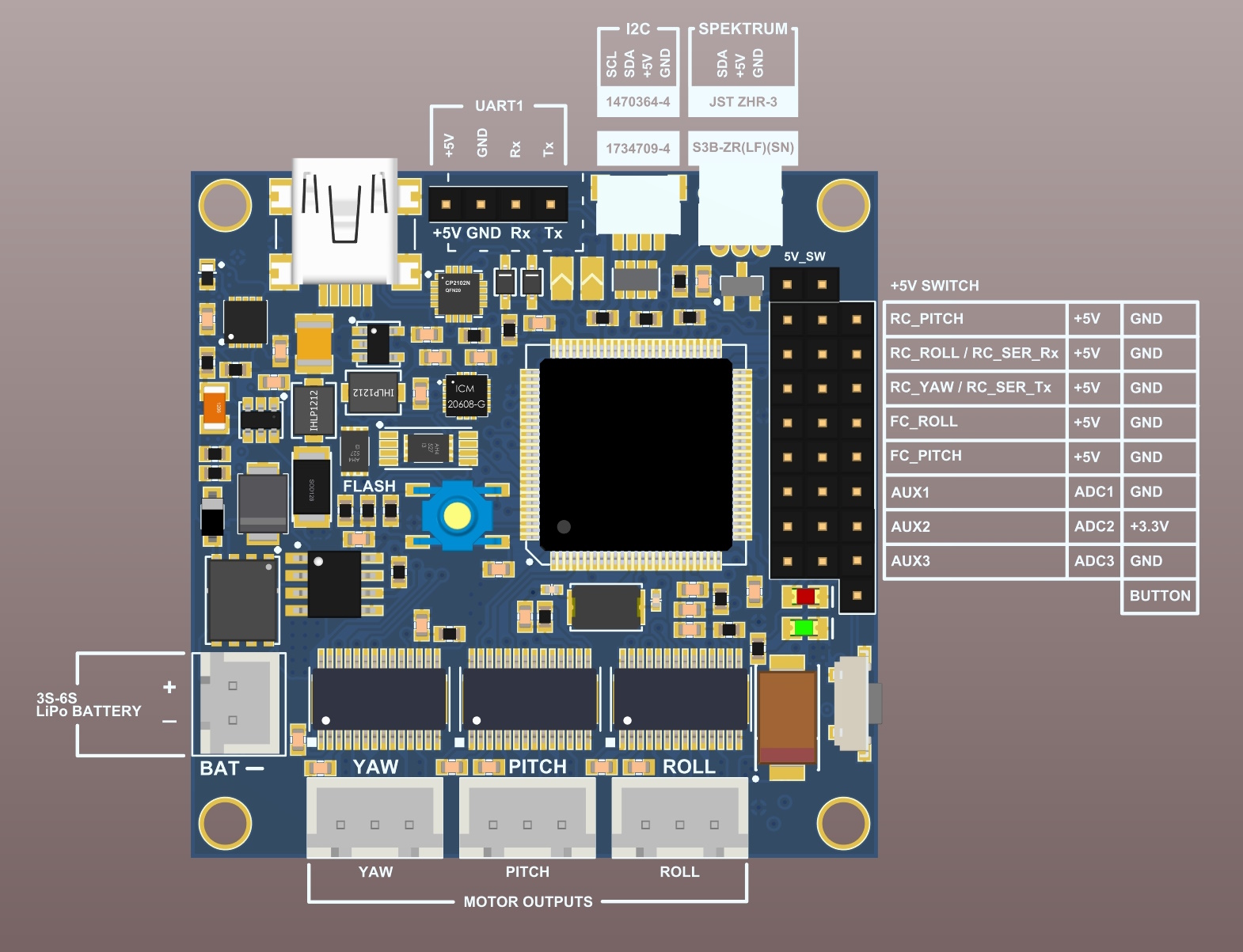

Capabilities of SimpleBGC32 gimbal controller



Specifications

Size of the board 50×50 mm
Distance between the mounting holes 45 mm
Diameter of the mounting holes 3 mm
Power supply voltage 8-26 V (3s-6s LiPo)
Maximum motor current 1,5 A*
5V output current to power external devices up to 1 A
3V output current 150 mA

* Maximum motor current 1,5 A — total continuous current for three motors, or instant current for each motor (4.5A in total for a short time). Installing proper heatsink may extend this parameter.

Downloads


Useful links

Video Tutorials


USB Drivers for PC Connection

If controller being connected to the USB port, is not recognized as COM-port, most probably you need to install or update drivers for CP210x chip. You can download driver for your OS from the manufacturer of CP210x.

AN IMPORTANT NOTE: The latest version (6.7.4) of driver for Windows may cause problems with delay in data transmission, visible as a big lag of the GUI. In this case, install version 6.7.2 of the driver, which had no such problems. Download version 6.7.2 driver.

Support

Type your question or comment below. Answer will be sent at your e-mail within 24 hours on workdays.




/!\ Serial port problem

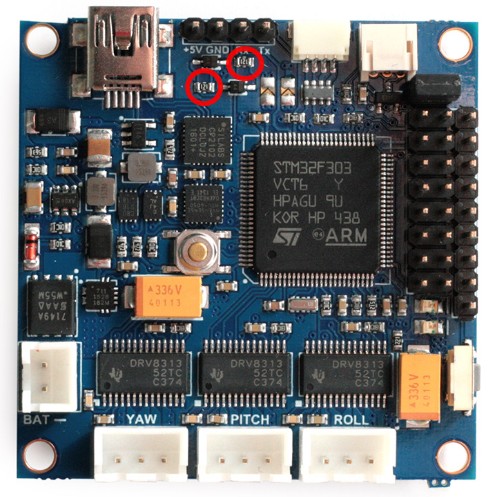

Some serial devices may not work with the main UART port of the «Extended» board (first revision). To solve this problem, remove (desolder or break) two resistors marked by red on this picture.
